Lion One Confirms High-Grade Gold Feeder Zone at Tuvatu, Fiji with TUDDH-601 Returning 54.9m of 12.22 g/t Au Including 20.10m of 23.03 g/t Au
Results for the first two diamond drill holes carried out as follow-up drilling from the significant new feeder zone mineralization in TUG-141 and reported on June 6, 2022 have been received and compiled. TUDDH-601 was drilled from surface at -85° and was designed to further test the high-grade zone encountered in TUG-141, and TUG-145 was drilled from the same underground collar location as TUG-141, collared at 3° steeper, and designed to test directly below the TUG-141 drill trace (Figure 1). TUG-145 drifted to the west and lifted more than expected.
Highlight intercepts from holes TUDDH-601 and TUG-145 include:
TUDDH-601
- 26.20 g/t Au over 1.20m from 165.7-166.9m;
- 115.42 g/t Au over 1.80m from 252.4-254.2m;
- 12.22 g/t Au over 54.90m from 576.1-631.0m, including
- 23.02 g/t Au over 20.10m from 576.1-596.2m, which includes 29.24 g/t Au over 15.6m;
- 8.09 g/t Au over 20.70m from 602.5-623.2m, which includes 9.25 g/t Au over 7.80m and 15.03 g/t Au over 5.40m
- 6.72 g/t Au over 15.30m from 110.4-125.7m, including
- 41.16 g/t Au over 1.20m from 117.3-118.5m; - 20.38 g/t Au over 0.90m from 278.7-279.6m;
- 28.68 g/t Au over 1.80m from 305.4-307.2m;
- 4.69 g/t Au over 10.20m from 357.9-368.1m, including
- 9.58 g/t Au over 1.20m from 358.8-360.0m,
- 6.99 g/t Au over 1.20m 362.1-363.3m, and
- 8.41 g/t Au over 1.50m from 363.9-365.4m - 17.80 g/t Au over 0.30m from 405.9-406.2m;
- 8.73 g/t Au over 6.00m from 424.2-430.2, including
- 31.94 g/t Au over 1.20m from 426.3-427.5m - 18.15 g/t Au over 0.60m from 598.5-599.1m
TUG-145 represented an inclined hole 3° steeper than TUG-141, drilled from the same underground collar location (Table 2 below). The hole drifted west and lifted such that the effective distance between TUG-141 and TUG-145 was approximately 21m at the 600m depth mark, with TUG-145 west of TUG-141. While TUG-141 drilled out of the less favourable monzonite and into the favourable andesite at approximately 390m depth, TUG-145 remained in monzonite until a depth of approximately 600m, indicating a southward shift of this lithological contact at this location, as illustrated schematically in Figure 4. It is thought that the monzonite to andesite contact recorded by TUG-141, is shifted south along a N-S structure, likely UR1, and that the high-grade continuous mineralization recorded by TUG-141 is largely focussed on the andesite side (east side) of this contact. Therefore, Lion One believes that the lithological contact between monzonite and andesite forms a primary control on high-grade mineralization at this location, and that the projection of this contact to depth as well as along strike, represents a first-order target for further follow-up drilling.
The next two planned follow up holes to TUG-141 are shown on Figure 5 below. One hole from surface, already underway as TUDDH-608, was collared at a planned azimuth of N089° and dip of -65°, targeting the high-grade intercept in TUG-141, and a second hole will collar from underground, approximately 180m further south along the decline from the TUG-141 and 145 collars, and target the same high-grade intercept at a planned azimuth of N139° and dip of -66°. The combination of these two holes should provide good information on the potential width and possible down plunge extent of the TUG-141/TUDDH-601 high-grade zone, which should allow for a realistic estimate of the volume, and hence contained Au ounces, in this zone. Additional follow-up holes are being planned as well.
Lion One technical advisor Quinton Hennigh stated, "As we drill more, the geologic setting of this important feeder zone is coming into clarity. It occurs at a major structural intersection where the north-south-trending UR1 & 2 lodes meet the northeast-trending UR4 & 5 lodes. Importantly, high-grade mineralization appears to be focussed within andesite host rocks just outboard from the contact with less favourable monzonite. With this understanding, we believe that further high-grade can be pursued along this contact at depth. The team is currently lining up more holes to test this extension."
Lion One CEO Walter Berukoff further stated, "The spectacular discovery previously announced as the result of drilling hole TUG-141 has been confirmed by follow-up drilling in hole TUDDH-601. The positive confirmation of the longest high-grade intercept yet recorded at Tuvatu gives us further confidence that we are just now beginning to unlock the true potential of the 500 Zone high-grade feeder. The persistent success of our systematic drilling programs at Tuvatu underscores the significance of Tuvatu as a potentially multi-million ounce, world-class high-grade Au deposit."

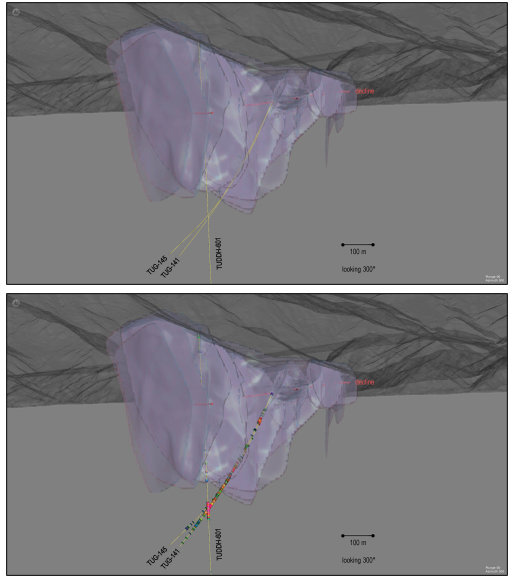

Figure 1. Image from Leapfrog software showing the modeled lodes representing the Tuvatu resource in semi-transparent gray with the traces of drill holes TUG-141, TUG-145 drilled from the same location along the exploration decline, and TUDDH-601 drilled at a dip of -85° from surface. Lower image overlays the mineralized intervals as colored discs that reflect grade (see Figure 3 caption for grade scale).
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/2178/133850_lionone_fig1.png

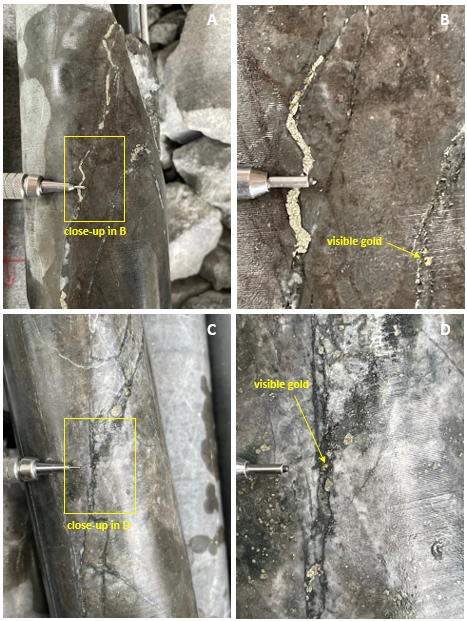

Figure 2. A) TUDDH-601 at 579.7m showing pervasively altered andesite grading 142.33 g/t Au; B) close-up of photo A; C) TUDDH-601 at 580.0m grading 108.99 g/t Au; D) close-up of photo C.
To view an enhanced version of this graphic, please visit: https://images.newsfilecorp.com/files/2178/133850_lionone_fig2.png

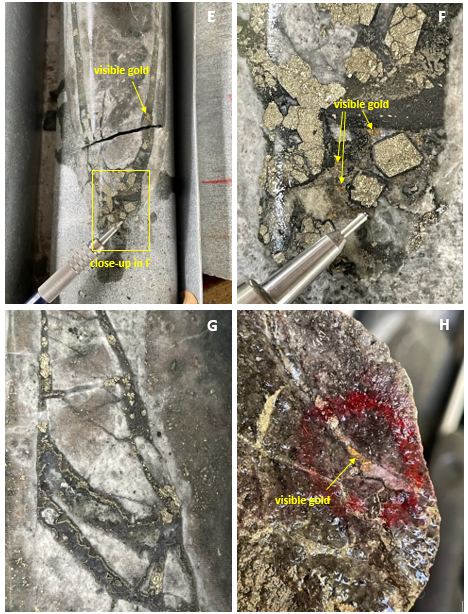

Figure 2 contd. E) TUDDH-601 at 580.2m qtz-py hydrothermal bx vein grading 140.99 g/t Au; F) close-up of photo A; G) TUDDH-601 at 583.5m showing hydrofractured qtz-py vein grading 4.73 g/t Au; H) TUDDH-601 at 593.9m showing coarse visible gold in qtz-py veining grading 230.37 g/t Au.
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/2178/133850_lionone_fig2cont.png

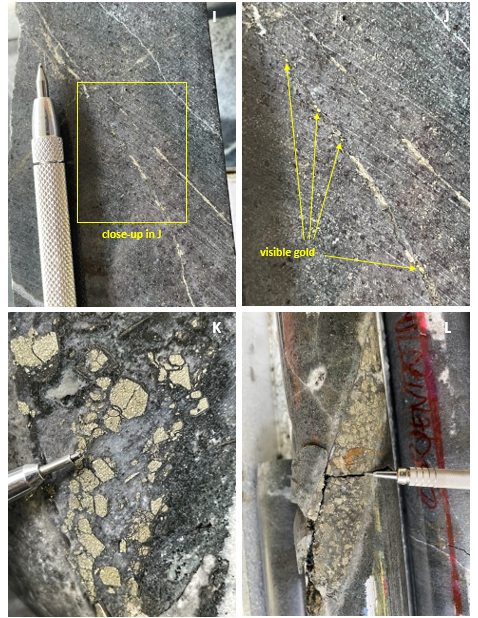

Figure 2 contd. I) TUDDH-601 at 592.2m showing very fine py-VG veins in pervasively altered andesite grading 33.77 g/t Au; J) close-up of photo I; K) TUDDH-601 at 609.0m qtz-py-roscoelite vein grading 10.49 g/t Au; L) TUDDH-601 at 610.8m qtz-py vein grading 20.31 g/t Au.
https://images.newsfilecorp.com/files/2178/133850_lionone_fig2cont2.png

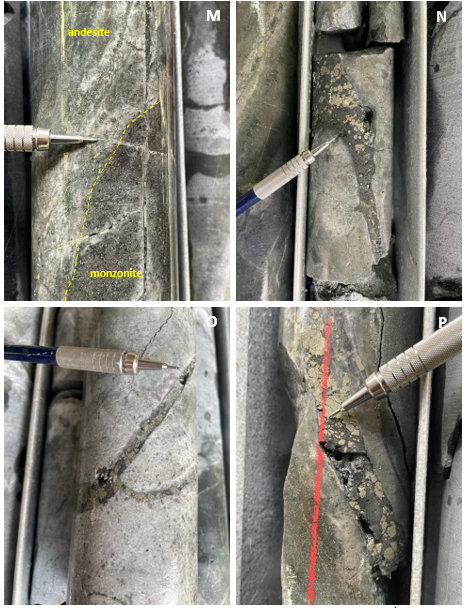

Figure 2 contd. M) TUDDH-601 monzonite-andesite contact at 617.0m grading 5.48 g/t Au; N) TUDDH-601 at 617.8m qtz-py vein in bleached andesite grading 11.67 g/t Au; O) TUDDH-601 at 621.5m qtz-py vein in bleached andesite grading 2.54 g/t Au; P) TUDDH-601 at 628.3m qtz-py vein in sercitized andesite grading 20.14 g/t Au.
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/2178/133850_lionone_fig2cont3.png

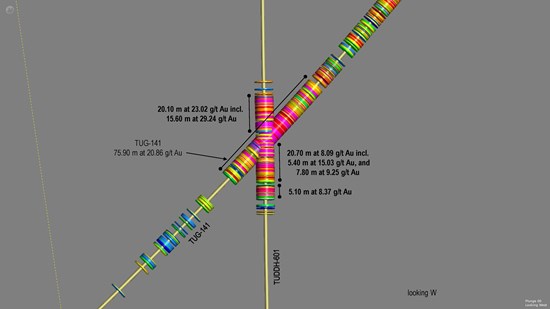

Figure 3. Vertical section looking West of the mineralized intervals in TUG-141 and TUDDH-601 that were drilled in essentially the same plane. Grades in ppm Au shown as colored discs are as follows: 0.1-0.2, blue; 0.2-0.3, light blue; 0.3-0.5, green; 0.5-1.0, yellow; 1-3, orange; 3-10, red; >10, fuschia.
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/2178/133850_1ce6c2b80467589e_063full.jpg

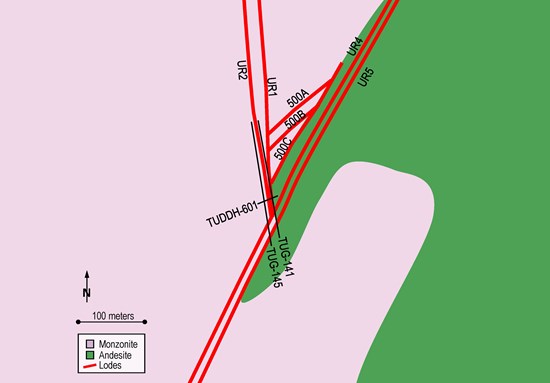

Figure 4. Schematic diagram of a horizontal plan at approximately RL= -260m illustrating the interpreted interplay between mineralized lodes and lithologic contact between monzonite (pink) and andesite (green), in the area of the TUG-141 high-grade discovery. The NE-trending monzonite-andesite contact is shifted to the south along UR1 at the location of the mineralization intersected by drill holes TUG-141 and TUDDH-601. Lodes UR1-UR2 pair appears to merge together at depth, with the NS-oriented lodes intersected by the NE-SW UR4 lode.
https://images.newsfilecorp.com/files/2178/133850_1ce6c2b80467589e_064full.jpg

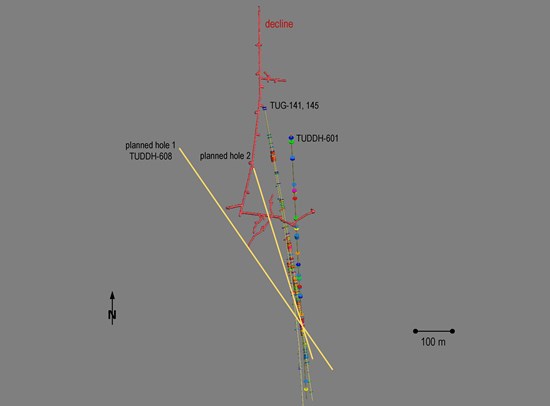

Figure 5. Figure looking North and down 45° showing the next two planned drill holes (yellow) testing the high-grade zone discovery of TUG-141. Planned hole 1 from surface which has started drilling as TUDDH-608 will test the width of the zone; planned hole 2 from the underground decline is scheduled to begin drilling soon and will test for possible down plunge extent.
To view an enhanced version of this graphic, please visit:
https://images.newsfilecorp.com/files/2178/133850_1ce6c2b80467589e_065full.jpg
Table 1: Drilling intervals returning >0.5 g/t Au (intervals > 3.0 g/t Au cutoff are shown in red, and intervals > 9.0 g/t Au or longer than 1.2m are bolded).
| Hole ID | From (m) | To (m) | Interval (m) | Grade (g/t Au) |
| TUDDH-601 | 165.7 | 166.9 | 1.2 | 26.20 |
| Incl. | 165.7 | 166.3 | 0.6 | 13.38 |
| Incl. | 166.3 | 166.9 | 0.6 | 39.01 |
| 168.1 | 171.7 | 3.6 | 1.00 | |
| 190.3 | 190.6 | 0.3 | 4.21 | |
| 252.4 | 254.2 | 1.8 | 115.42 | |
| Incl. | 252.4 | 252.7 | 0.3 | 26.29 |
| Incl. | 252.7 | 253.3 | 0.6 | 159.98 |
| 284.8 | 286.3 | 1.5 | 2.37 | |
| 362.8 | 363.4 | 0.6 | 1.61 | |
| 474.1 | 474.4 | 0.6 | 7.29 | |
| Incl. | 474.1 | 474.4 | 0.3 | 5.88 |
| Incl. | 474.4 | 474.7 | 0.3 | 8.69 |
| 569.8 | 570.4 | 0.6 | 1.49 | |
| 576.1 | 596.2 | 20.1 | 23.02 | |
| Incl. | 579.4 | 579.7 | 0.3 | 142.60 |
| Incl. | 579.7 | 580.0 | 0.3 | 109.00 |
| Incl. | 580.0 | 580.3 | 0.3 | 140.90 |
| Incl. | 580.3 | 580.6 | 0.3 | 263.40 |
| Incl. | 580.6 | 580.9 | 0.3 | 74.33 |
| Incl. | 580.9 | 581.2 | 0.3 | 25.89 |
| Incl. | 581.8 | 582.4 | 0.6 | 18.52 |
| Incl. | 583.9 | 584.2 | 0.3 | 5.03 |
| Incl. | 585.7 | 586.3 | 0.6 | 9.59 |
| Incl. | 586.3 | 586.6 | 0.3 | 9.43 |
| Incl. | 586.6 | 586.9 | 0.3 | 15.49 |
| Incl. | 586.9 | 587.2 | 0.3 | 18.06 |
| Incl. | 587.2 | 587.8 | 0.6 | 5.35 |
| Incl. | 588.1 | 588.7 | 0.6 | 39.23 |
| Incl. | 588.7 | 589.0 | 0.3 | 7.13 |
| Incl. | 589.0 | 589.6 | 0.6 | 26.15 |
| Incl. | 591.4 | 592.0 | 0.6 | 10.80 |
| Incl. | 592.0 | 592.6 | 0.6 | 33.77 |
| Incl. | 592.6 | 593.2 | 0.6 | 10.94 |
| Incl. | 593.2 | 593.5 | 0.3 | 28.67 |
| Incl. | 593.5 | 593.8 | 0.3 | 32.64 |
| Incl. | 593.8 | 594.1 | 0.3 | 230.40 |
| Incl. | 594.4 | 594.7 | 0.3 | 18.26 |
| Incl. | 594.7 | 595.0 | 0.3 | 50.32 |
| 598.0 | 600.7 | 2.7 | 0.50 | |
| 602.5 | 623.2 | 20.7 | 8.09 | |
| Incl. | 603.1 | 603.7 | 0.6 | 21.52 |
| Incl. | 603.7 | 604.3 | 0.6 | 9.40 |
| Incl. | 606.1 | 606.7 | 0.6 | 20.45 |
| Incl. | 606.7 | 607.3 | 0.6 | 10.48 |
| Incl. | 607.3 | 607.9 | 0.6 | 19.67 |
| Incl. | 608.5 | 608.8 | 0.3 | 20.64 |
| Incl. | 608.8 | 609.4 | 0.6 | 10.49 |
| Incl. | 609.4 | 609.7 | 0.3 | 5.74 |
| Incl. | 610.6 | 610.9 | 0.3 | 20.31 |
| Incl. | 612.7 | 613.0 | 0.3 | 19.61 |
| Incl. | 613.0 | 613.3 | 0.3 | 120.91 |
| Incl. | 613.6 | 613.9 | 0.3 | 7.67 |
| Incl. | 613.9 | 614.2 | 0.3 | 12.69 |
| Incl. | 614.2 | 614.8 | 0.6 | 12.29 |
| Incl. | 615.1 | 615.7 | 0.6 | 11.67 |
| Incl. | 615.7 | 616.3 | 0.6 | 9.65 |
| Incl. | 616.9 | 617.5 | 0.6 | 5.48 |
| Incl. | 617.5 | 618.1 | 0.6 | 11.67 |
| Incl. | 620.8 | 621.1 | 0.3 | 5.14 |
| 625.9 | 631.0 | 5.1 | 8.37 | |
| Incl. | 626.8 | 627.1 | 0.3 | 10.01 |
| Incl. | 627.7 | 628.3 | 0.6 | 20.14 |
| Incl. | 629.5 | 629.8 | 0.3 | 18.01 |
| Incl. | 630.1 | 630.7 | 0.6 | 24.08 |
| 632.2 | 632.5 | 0.3 | 0.62 | |
| 639.1 | 640.6 | 1.5 | 0.58 | |
| 842 | 842.3 | 0.3 | 0.50 | |
| TUG-145 | 110.4 | 125.7 | 15.3 | 6.72 |
| Incl. | 110.4 | 110.7 | 0.3 | 18.77 |
| Incl. | 110.7 | 111.0 | 0.3 | 6.76 |
| Incl. | 111.9 | 112.2 | 0.3 | 6.30 |
| Incl. | 112.2 | 112.5 | 0.3 | 11.30 |
| Incl. | 115.5 | 115.8 | 0.3 | 6.91 |
| Incl. | 115.8 | 116.1 | 0.3 | 6.36 |
| Incl. | 117.3 | 117.6 | 0.3 | 40.73 |
| Incl. | 117.6 | 117.9 | 0.3 | 89.51 |
| Incl. | 117.9 | 118.2 | 0.3 | 9.80 |
| Incl. | 118.2 | 118.5 | 0.3 | 28.45 |
| Incl. | 120.3 | 120.6 | 0.3 | 7.77 |
| Incl. | 120.6 | 120.9 | 0.3 | 5.01 |
| Incl. | 120.9 | 121.2 | 0.3 | 8.62 |
| Incl. | 121.2 | 121.5 | 0.3 | 5.17 |
| Incl. | 121.5 | 121.8 | 0.3 | 13.73 |
| Incl. | 125.1 | 125.4 | 0.3 | 10.43 |
| 237.6 | 239.1 | 1.5 | 1.36 | |
| 262.8 | 263.4 | 0.6 | 3.31 | |
| Incl. | 262.8 | 263.4 | 0.3 | 5.01 |
| 278.7 | 279.6 | 0.9 | 20.38 | |
| Incl. | 278.7 | 279.0 | 0.3 | 24.16 |
| Incl. | 279.0 | 279.3 | 0.3 | 35.33 |
| 305.4 | 307.2 | 1.8 | 28.68 | |
| Incl. | 305.4 | 305.7 | 0.3 | 150.76 |
| Incl. | 305.7 | 306.0 | 0.3 | 11.51 |
| 357.9 | 368.1 | 10.2 | 4.69 | |
| Incl. | 358.8 | 359.1 | 0.3 | 6.25 |
| Incl. | 359.1 | 359.4 | 0.3 | 19.46 |
| Incl. | 359.4 | 359.7 | 0.3 | 9.21 |
| Incl. | 360.6 | 360.9 | 0.3 | 5.42 |
| Incl. | 361.8 | 362.1 | 0.3 | 5.75 |
| Incl. | 362.1 | 362.4 | 0.3 | 9.15 |
| Incl. | 362.4 | 362.7 | 0.3 | 9.83 |
| Incl. | 363.0 | 363.3 | 0.3 | 7.28 |
| Incl. | 363.9 | 364.2 | 0.3 | 14.47 |
| Incl. | 365.1 | 365.4 | 0.3 | 22.39 |
| Incl. | 366.6 | 366.9 | 0.3 | 6.03 |
| Incl. | 367.2 | 367.5 | 0.3 | 11.42 |
| 373.5 | 374.1 | 0.6 | 0.57 | |
| 375.3 | 376.8 | 1.5 | 0.83 | |
| 378.6 | 378.9 | 0.3 | 2.05 | |
| 380.4 | 381.3 | 0.9 | 1.53 | |
| 387.9 | 388.5 | 0.6 | 1.30 | |
| 405.9 | 406.2 | 0.3 | 17.8 | |
| 424.2 | 430.2 | 6.0 | 8.73 | |
| Incl. | 424.5 | 424.8 | 0.3 | 5.83 |
| Incl. | 425.7 | 426.0 | 0.3 | 8.23 |
| Incl. | 426.0 | 426.3 | 0.3 | 5.26 |
| Incl. | 426.3 | 426.6 | 0.3 | 10.37 |
| Incl. | 426.6 | 426.9 | 0.3 | 34.48 |
| Incl. | 426.9 | 427.2 | 0.3 | 76.12 |
| Incl. | 427.2 | 427.5 | 0.3 | 6.81 |
| Incl. | 429.9 | 430.2 | 0.3 | 11.61 |
| 452.7 | 453.0 | 0.3 | 1.08 | |
| 598.5 | 599.1 | 0.6 | 18.15 | |
| Incl. | 598.5 | 598.8 | 0.3 | 33.68 |
| 600.6 | 600.9 | 0.3 | 0.91 |
Table 2: Survey details of diamond drill holes referenced in this release
| Hole No | Coordinates (Fiji map grid) | RL | final depth | dip | azimuth | |
| N | E | m | (TN) | |||
| TUDDH-601 | 3920444 | 1876508 | 347.9 | 878.9 | -85 | 061 |
| TUG-141 | 3920759 | 1876459 | 139.2 | 675.0 | -55 | 162 |
| TUG-145 | 3920759 | 1876459 | 139.1 | 692.1 | -58 | 161 |
| TUDDH-608 | 3920472 | 1876281 | 286.4 | 800 planned | -65 | 089 |
| planned hole 2 | 3920582 | 1876435 | 118.0 | 500 planned | -66 | 139 |
Qualified Person
In accordance with National Instrument 43-101 - Standards of Disclosure for Mineral Projects ("NI 43-101"), Sergio Cattalani, P.Geo, Senior Vice President Exploration, is the Qualified Person for the Company and has reviewed and is responsible for the technical and scientific content of this news release.
QAQC Procedures
Lion One adheres to rigorous QAQC procedures above and beyond basic regulatory guidelines in conducting its sampling, drilling, testing, and analyses. The Company utilizes its own fleet of diamond drill rigs, using PQ, HQ and NQ sized drill core rods. Drill core is logged and split by Lion One personnel on site. Samples are delivered to and analysed at the Company's geochemical and metallurgical laboratory in Fiji. Duplicates of all samples with grades above 0.5 g/t Au are both re-assayed at Lion One's lab and delivered to ALS Global Laboratories in Australia (ALS) for check assay determinations. All samples for all high-grade intercepts are sent to ALS for check assays. All samples are pulverized to 80% passing through 75 microns. Gold analysis is carried out using fire assay with an AA finish. Samples that have returned grades greater than 10.00 g/t Au are then re-analysed by gravimetric method. For samples that return greater than 0.50 g/t Au, repeat fire assay runs are carried out and repeated until a result is obtained that is within 10% of the original fire assay run. For samples with multiple fire assay runs, the average of duplicate runs is presented. Lion One's laboratory can also assay for a range of 71 other elements through Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES), but currently focuses on a suite of 9 important pathfinder elements. All duplicate anomalous samples are sent to ALS labs in Townsville QLD and are analysed by the same methods (Au-AA26, and Au-GRA22 where applicable). ALS also analyses for 33 pathfinder elements by HF-HNO3-HClO4 acid digestion, HCl leach and ICP-AES (method ME-ICP61).
